$8,949.00

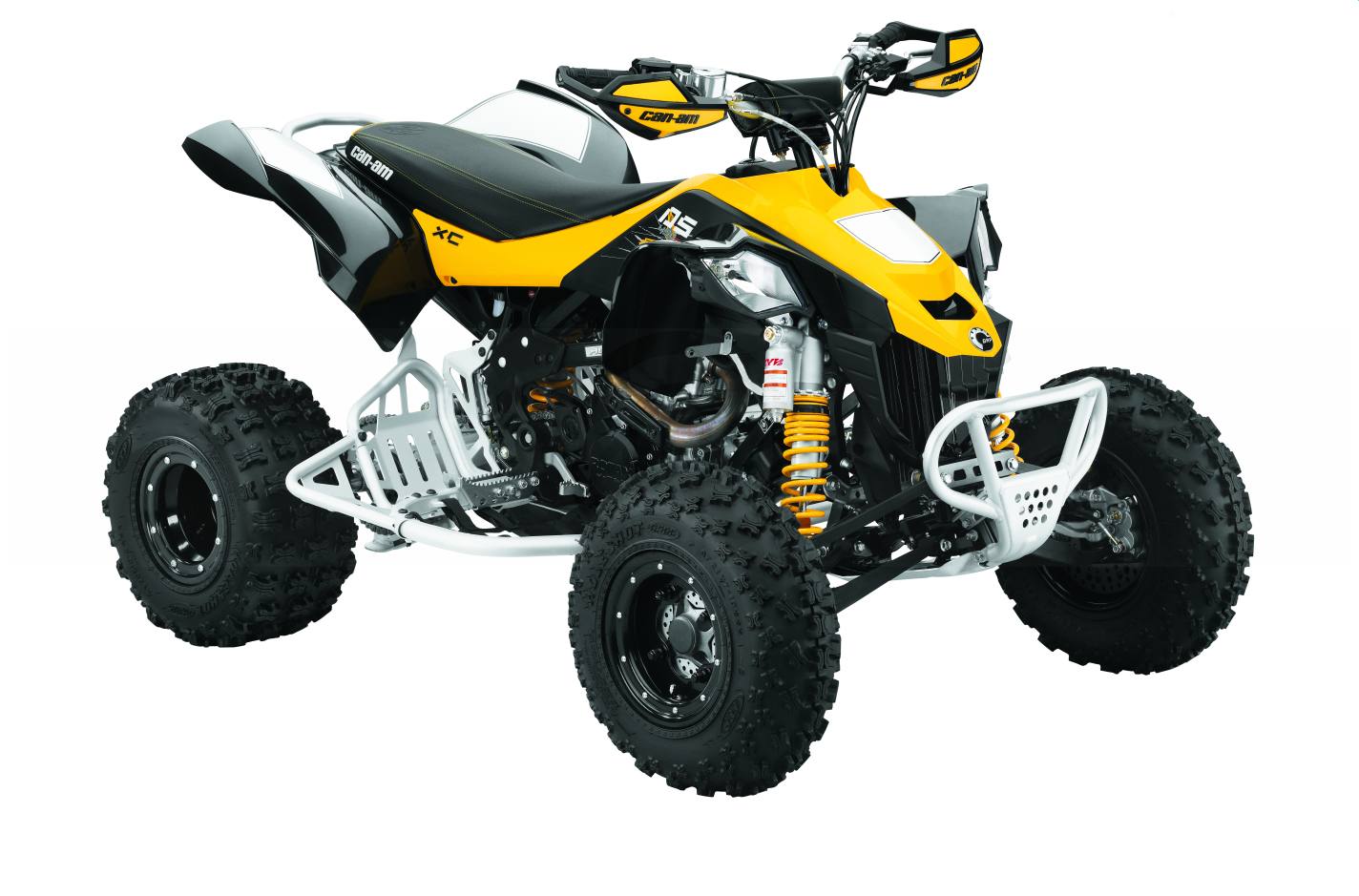

2010 Can-Am DS 450 EFI X xc
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

In developing the DS 450, we truly reinvented how a sport quad is built. With the industry’s first no-weld all-aluminum frame, hollow rear axle and inverted brake calipers. We then pushed the concept even further with two terrain-specific X models. The tight-woods racing DS 450 X xc and motocross-inspired DS 450 X mx. Both are equipped with industry-leading features and are ready to race right out of the box. You can read on. But eventually, you’re just going to have to ride one.

  • Rotax 4-TEC 449 cc, liquid-cooled, single-cylinder 4-stroke -DOHC 4-valve head -97 x 60.8 mm bore and stroke -EFI with 46-mm throttle body, 16-bit CPU with 32-MHz clock speed
  • Electric start
  • 5-speed manual transmission
  • Chain drive with rigid axle
  • No weld, ALTEC twin pyramidal aluminum frame
  • R-type forged aluminum double A-arm front suspension
  • KYB HPG aluminum piggyback front shocks with compression, rebound and preload adjustments and 9.5 inches (241 mm) of travel
  • R-type cast-aluminum swingarm rear suspension
  • KYB HPG aluminum piggyback rear shock with compression, rebound and preload adjustments and 10.5 inches (267 mm) of travel
  • ITP Holeshot SR front and rear tires
  • Polished aluminum wheels
  • New front grill
Engine
  • Engine Type: 449.3 cc, single-cylinder, liquid-cooled, DOHC 4-valve head with high-flow “Durchzugskraft” design, 38 mm intake valve, 31 mm Nimonic - alloy
  • Bore & Stroke: 97 x 60.8 mm
  • EFI System / Carburetor: 46-mm Throttle Body, 16 bit / 32-MHz CPU
  • Starting System: Electric
  • Transmission: 5-speed manual / heavy-duty clutch, 9 friction plates with DirectLink mechanism
  • Drivetrain: 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Chassis
  • Frame: ALTEC dual-pyramidal aluminum
  • Front Suspension Type: R-type cast-aluminum swingarm KYB HPG piggyback shocks with compression, rebound and preload adjustments
  • Front Travel: 9.5 in (241 mm)
  • Rear Suspension Type: R-type cast-aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
  • Rear Travel: 10.5 in (267 mm)
  • Front Brake: Dual 182 mm discs with inverted twin-piston calipers
  • Rear Brake: 198 mm rotor with single piston caliper
  • Tires/Front: ITP Holeshot SR 21 x 7R-10 in. (533 x 178R-254 mm)
  • Tires/Rear: ITP Holeshot SR 20 x 10R-9 in. (508 x 254R-229 mm)
  • Wheels: Aluminum polished
Dimensions
  • L x W x H (in): 72.4 x 46 x 41.9 in
  • L x W x H (mm): 1,839 x 1,168 x 1,064 mm
  • Wheelbase: 50 in (1,267 mm)
  • Seat Height: 33 in (831 mm)
  • Ground Clearance: 9 in (229 mm)
  • Dry Weight: 349 lbs (158 kg)
  • Fuel Capacity: 3 US gal. (11.5 L)
Other Features
  • Instrumentation: Low fuel, check engine, neutral
  • Lighting: Dual removable headlights (35W)
  • Color(s) available: Yellow and black with X package graphics
X xc Package
  • New X xc race graphics and color scheme
  • R-type forged aluminum double A-arms with adjustable caster
  • KYB HPG C36 aluminum piggyback front shocks with dual-speed compression, rebound and preload adjustments and 9.6 inches (245 mm) of travel
  • KYB HPG C40 aluminum piggyback rear shock with dual-speed compression, rebound and preload adjustments and 10.5 inches (267 mm) of travel
  • 7.5-inch (190 mm) factory-set ride height (175-lb rider)
  • Adjustable-width hollow rear axle (from 46 inches [1.17 m] to 50 inches [1.27 m] by increments of 0.5 inch [12.7 mm] per spacer)
  • Extra-strength extended 1-inch (25.4 mm) steering stem with anti-vibe mounts
  • 21x7-10 ITP Holeshot GNCC 6-ply front tires
  • 20x10-9 ITP Holeshot GNCC 6-ply rear tires
  • Black aluminum ITP 10x5 T-9 Trac-lock front wheels
  • Black aluminum ITP 9x8 T-9 Trac-lock rear wheels
  • 3-mm full aluminum chassis skid plate
  • 5-mm full aluminum swing arm skid plate
  • Aluminum nerf bars with removable aluminum heel guards
  • Aluminum 6061-T6 taper-profile handlebar with square pad
  • Aluminum front bumper, number plate ready
  • Handlebar wind deflectors
  • New X package seat cover
  • New X xc race graphics

Specifications

Engine
Engine Type DOHC 4-valve head with high-flow “Durchzugskraft” design, 38 mm intake valve, 31 mm Nimonic - alloy
Displacement 449.3 cc
Bore x Stroke 97 x 60.8 mm
Cylinders 1
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 16 bit / 32-MHz CPU
Starting System Electric
Chassis
Front Suspension R-type cast-aluminum swingarm KYB HPG piggyback shocks with compression, rebound and preload adjustments
Front Travel 9.5 in. (241 mm)
Front Brake Type Dual 182 mm discs with inverted twin-piston calipers
Front Tires ITP Holeshot SR 21 x 7R-10 in. (533 x 178R-254 mm)
Rear Suspension R-type cast-aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
Rear Travel 10.5 in. (267 mm)
Rear Brake Type 198 mm rotor with single piston caliper
Rear Tires ITP Holeshot SR 20 x 10R-9 in. (508 x 254R-229 mm)
Frame ALTEC dual-pyramidal aluminum
Dimensions/Capacities
Dry Weight 349 lbs. (158 kg)
Fuel Capacity 3 gal. (11.5 l)
Ground Clearance 9 in. (229 mm)
Machine Dimensions (LxWxH) 72.4 x 46 x 41.9 in. (1,839 x 1,168 x 1,064 mm)
Wheelbase 50 in. (1,267 mm)
Drive Train
Drive Train 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Transmission 5-speed manual / heavy-duty clutch, 9 friction plates with DirectLink mechanism
General
Lighting Dual removable headlights (35W)
Colors Yellow and black with X package graphics

Compare Models

 Print








Year 2010
Manufacturer Can-Am
Model DS 450 EFI X xc
Style Sport
MSRP* $8,949.00
Chassis
Front Suspension R-type cast-aluminum swingarm KYB HPG piggyback shocks with compression, rebound and preload adjustments
Front Travel 9.5 in. (241 mm)
Front Brake Type Dual 182 mm discs with inverted twin-piston calipers
Front Tires ITP Holeshot SR 21 x 7R-10 in. (533 x 178R-254 mm)
Rear Suspension R-type cast-aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
Rear Travel 10.5 in. (267 mm)
Rear Brake Type 198 mm rotor with single piston caliper
Rear Tires ITP Holeshot SR 20 x 10R-9 in. (508 x 254R-229 mm)
Frame ALTEC dual-pyramidal aluminum
Dimensions/Capacities
Dry Weight 349 lbs. (158 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 3 gal. (11.5 l)
Ground Clearance 9 in. (229 mm)
Machine Dimensions (LxWxH) 72.4 x 46 x 41.9 in. (1,839 x 1,168 x 1,064 mm)
Wheelbase 50 in. (1,267 mm)
Drive Train
Drive Train 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Final Drive
Transmission 5-speed manual / heavy-duty clutch, 9 friction plates with DirectLink mechanism
Engine
Engine Type DOHC 4-valve head with high-flow “Durchzugskraft” design, 38 mm intake valve, 31 mm Nimonic - alloy
Displacement 449.3 cc
Bore x Stroke 97 x 60.8 mm
Cylinders 1
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 16 bit / 32-MHz CPU
Starting System Electric
Alternator
General
Speedometer
Tachometer
Odometer
Lighting Dual removable headlights (35W)
Colors Yellow and black with X package graphics
Warranty

Current Promotions

There are currently no promotions available for this product.
